What is Tetraneurons

TetraNeurons is a disaster management application that integrates a React frontend with a FastAPI backend, Firebase for real-time data management, and supports third-party APIs and MCP Server functionalities.

Use cases

Use cases include coordinating rescue operations during natural disasters, providing real-time updates to first responders, and facilitating communication between government officials and the public during emergencies.

How to use

To use TetraNeurons, clone the repository, set up the frontend and backend environments, configure Firebase, and ensure trusted email domains for user roles. Run the frontend and backend servers to start the application.

Key features

Key features include a user-friendly React interface, FastAPI for efficient backend processing, Firebase integration for real-time updates, and support for third-party APIs to enhance functionality.

Where to use

TetraNeurons can be used in disaster management scenarios, emergency response coordination, and community engagement during crises, making it suitable for government agencies, NGOs, and volunteer organizations.

TetraNeurons

TetraNeurons is a disaster management application with a React frontend, FastAPI backend, Firebase integration,third-party API & MCP Server support.

Project Setup

Clone the Repository

git clone https://github.com/Adhishtanaka/TetraNeurons.git
cd TetraNeurons

Frontend Setup

Install and Run Frontend

cd frontend
npm install
npm run dev

The frontend will run at: http://localhost:5173

Frontend Environment Configuration

Create a .env file in the frontend/ directory:

VITE_OPENWEATHER_API_KEY=12345678901234567890

Trusted Email Domains

For domain verification of roles like government officials and first responders, update trusted_domain.yaml in the backend/ directory:

:gov:
  - gov.example.com
  - ministry.gov
first_responders:
  - firedept.org
  - ambulance.org
  - police.org

This ensures that only users with approved domains can register as gov or first_responders. Volunteers and regular users are not domain-restricted.

Firebase Configuration

In frontend/src/services/firebase.ts, update the firebaseConfig object with your Firebase credentials:

const firebaseConfig = {
  apiKey: "YOUR_FIREBASE_API_KEY",
  authDomain: "YOUR_FIREBASE_AUTH_DOMAIN",
  projectId: "YOUR_FIREBASE_PROJECT_ID",
  storageBucket: "YOUR_FIREBASE_STORAGE_BUCKET",
  messagingSenderId: "YOUR_FIREBASE_MESSAGING_SENDER_ID",
  appId: "YOUR_FIREBASE_APP_ID",
  databaseURL: "YOUR_FIREBASE_DATABASE_URL"
};

Backend Setup

Install and Run Backend

cd backend

# Create a virtual environment (only first time)
python -m venv .venv

# Activate virtual environment
# On Windows:
.venv\Scripts\activate
# On macOS/Linux:
source .venv/bin/activate

# Install dependencies
pip install -r requirements.txt

# Run FastAPI backend
fastapi dev main.py

The backend will run at: http://localhost:8000

Backend Environment Configuration

Create a .env file in the backend/ directory:

JWT_SECRET_KEY=asdfghjklsdfghjcvgbn
GOOGLE_API_KEY=asdfghjklsdfghjcvgbn  # Don't mind the variable name, it's just the Gemini API key

Firebase Service Account

Place your Firebase service account file in:

backend/serviceAccountKey.json

MCP Server

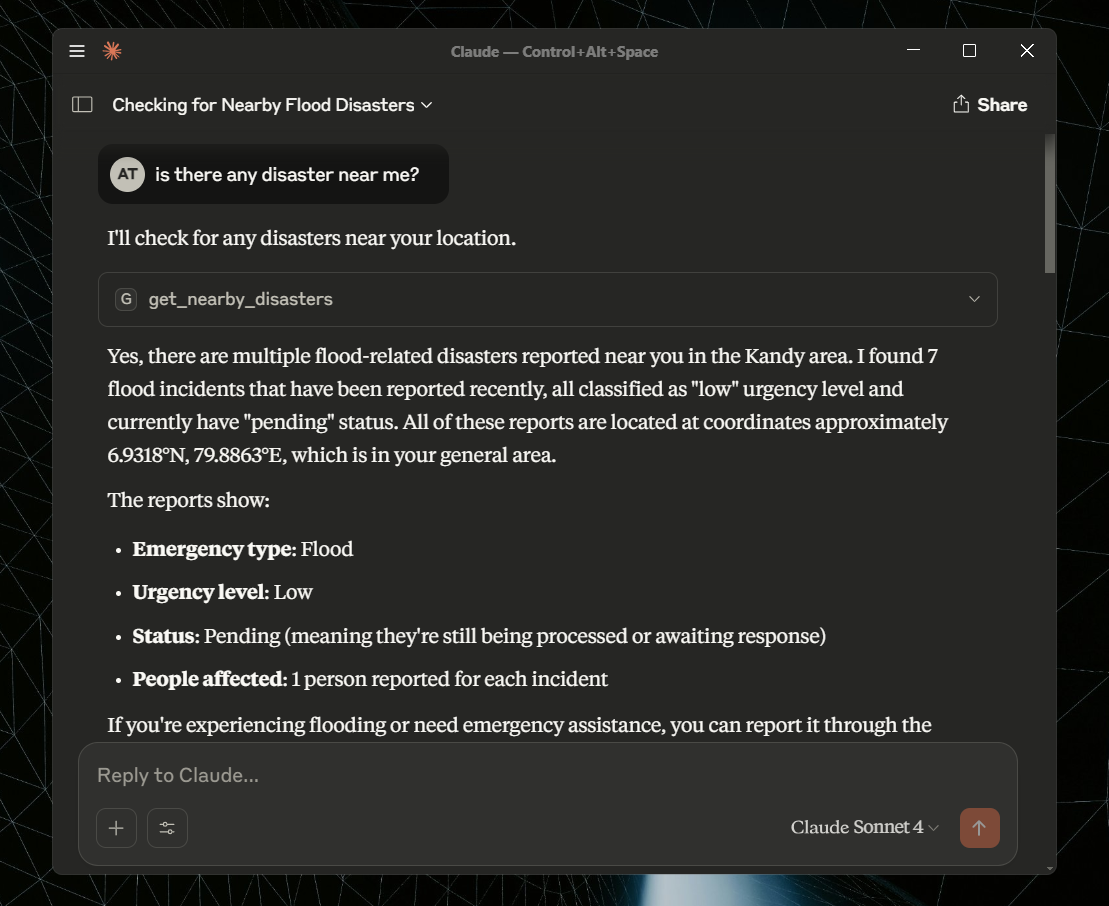

This MCP server that provides location-aware disaster response capabilities. This server connects to a disaster management API to help users find nearby emergencies and report assistance needs.

Tools Available

• get_nearby_disasters() - Find disasters near your current location
• report_emergency(disaster_id, help_text, urgency_type) - Report emergency assistance needs

Installation & Usage

1. Clone the Repository

cd MCP Server

# Create a virtual environment (only first time)
python -m venv .venv

# Activate virtual environment
# On Windows:
.venv\Scripts\activate
# On macOS/Linux:
source .venv/bin/activate

# Install dependencies
pip install -r requirements.txt

2. Create a .env File

Create a .env file and add your JWT TOKEN:

TOKEN=your_jwt_token_here

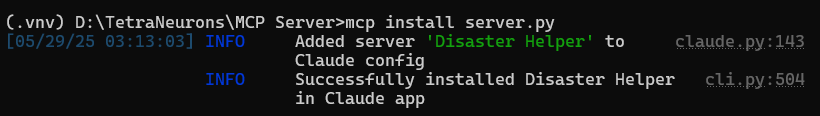

3. Run the MCP Server

mcp install server.py

AI Models (Model Folder)

Also model/ directory contains files used to train and run models for disaster detection and people counting:

• best_intellihack_model.pth: Pre-trained PyTorch model for disaster classification and crowd estimation.
• IntelliHack.ipynb: Jupyter notebook used for training and testing the CNN model.
• yolov8n.pt: YOLOv8 Nano version weights
• yolov9c.pt: YOLOv9 Compact version weights

Assumptions

• Email Domain Trust: In our role-based auth Certain roles (e.g. government officials and first responders) must use email domains listed in trusted_domain.yaml to signup. Example:

:gov:
  - gov.example.com
  - ministry.gov
first_responders:
  - firedept.org
  - ambulance.org
  - police.org

Volunteers and general users are not restricted by domain.so we assume Each government agency or first responder department must issue an official email to its personnel.

• Disaster Location Precision & Reporter Proximity: We assume each disaster affects around 20 km², based on geohash level 4. The first person requesting help is considered to be near the center of the affected area, not at the edge. This helps us quickly map the zone, prioritize response, and allocate resources. The area size can still be adjusted manually if needed.

• Disaster Task Sending Strategy:

  • Small urgency can be managed by volunteers.
  • Medium-scale urgency* are handled primarily by first responders.
  • Large-scale complex urgency* require combined efforts of government bodies and volunteers.
  • This structure ensures volunteer safety while enabling scalable response.

• Resource Assumption: All aid resources (e.g., shelters, medication stations) are assumed to be static and not mobile.

• Voice Input: Voice input is not accepted for reporting disasters due to:

  • Environmental noise commonly present in disaster situations can interfere with voice recognition accuracy.
  • Language or accent barriers may prevent accurate interpretation of spoken reports.
  • Individuals may be in distress or panic, which can affect speech clarity and coherence.

• Image Analysis Strategy:

  • We do not use VLMs like CLIP for classification due to high computational cost and low control over label specificity.
  • Instead, a custom CNN model is used to classify disaster types and count people—this is faster and cheaper after training.
  • Additionally, we leverage Gemini Flash 2 API, a multimodal model,which also a VLM capable model for more robust image understanding.

• Weather Data:

  • We use the OpenWeather API for Map precipitation data filter relevant to disasters.
  • Although the API allows only 60 calls per minute, this is considered acceptable under expected usage.

AI Workflow Architecture

Workflow 1: Multiagent Emergency Report Analysis

Triggered: When first emergency call/photo is submitted
Purpose: Create government and citizen reports, predict future impact, validate request authenticity

2 AI Agents:

• Government Analysis AI Agent: Creates official response reports using Gemini AI
• Citizen Survival AI Agent: Generates public safety instructions using Gemini AI

3 Data Collection Tools:

• Computer Vision Tool: Analyzes emergency photos using CNN + YOLO models
• Weather Tool: Gets current conditions (Open-Meteo API)
• Disaster History Tool: Fetches past disasters (GDAC API)

5 System Coordinators:

• Parallel Data Coordinator: Runs weather + history+ computer vision tools simultaneously
• Data Validation Coordinator: Checks data quality and completeness
• Parallel AI Coordinator: Runs government + citizen agents simultaneously
• Final Review Coordinator: Evaluates all outputs for acceptance/rejection
• Master Coordinator: Orchestrates entire multiagent workflow

Multiagent Interaction Flow:

          First Emergency Request
                        ↓
Parallel Data Collection → Weather Tool + History Tool +  Computer Vision Tool (simultaneous)
                        ↓
Data Validation → Quality check by validation coordinator
                        ↓
Parallel AI Analysis → Government Agent + Citizen Agent (simultaneous)
                        ↓
Final Coordination → Master coordinator reviews all agent outputs → Decision

Agent Collaboration: Each AI agent works independently on specialized tasks while coordinators manage data flow, timing, and final decision-making across all agents.

Workflow 2: Task Creation & Dispatch

Triggered: When government accepts the emergency report
Purpose: Create specific tasks for responders and dispatch them

1 AI Agent:

• AI Task Generator Agent: Creates specific responder instructions (Gemini 2.0)

Components:

• Disaster Context Fetcher: Gets emergency details from database
• Task Dispatcher: Assigns tasks by uploading them to real-time database.

Process Flow:

Government Approval → Disaster Lookup →  Task Generation + Responder Assignment by ai agent→ Task Dispatch

Workflow 3: Additional Help Requests

Triggered: When other people in the same disaster area request help
Purpose: Add new tasks for existing disaster without full analysis

1 AI Agent:

• AI Task Generator Agent:creates tasks based on existing disaster & resource context (Gemini 2.0)

Components:

• Help Request Processor: Validates new help requests
• Disaster Context Fetcher: Gets emergency details from database
• Resource Finder: Locates nearby hospitals, shelters, supplies
• Task Adder: Adds new tasks to existing tasks in database

Process Flow:

Help Request → Disaster Lookup → Resource Discovery →
Quick Task Generation by ai agent → Add to Task Queue → Responder Assignment

🔗 Workflow Integration

Workflow 1: Emergency Report → Government Review → Approval
                                    ↓
Workflow 2: Task Creation → Responder Dispatch → Active Response
                                    ↓
Workflow 3: Additional Help Requests → More Tasks → Extended Response

Notes

• Be sure to replace the provided API keys and secrets with your own in production.
• The app includes disaster-related data visualization, user authentication, and real-time alerts.
