What is Aws Serverless Mcp

aws-serverless-mcp is a server implementation of the MCP framework utilizing AWS Serverless services, enabling scalable and efficient management of tasks and events.

Use cases

Use cases for aws-serverless-mcp include automating workflows, managing scheduled tasks, integrating with other AWS services, and building scalable applications without the need for server management.

How to use

To use aws-serverless-mcp, install the SAM CLI, build the application with ‘sam build’, and deploy it using ‘sam deploy --guided’. Ensure to provide necessary parameters such as EventBusName, Project, and ServerName during deployment.

Key features

Key features of aws-serverless-mcp include integration with AWS Lambda, EventBridge for event handling, and Step Functions for managing workflows. It supports OAuth authentication and provides a customizable server endpoint.

Where to use

aws-serverless-mcp can be used in various fields such as cloud computing, event-driven architectures, and applications requiring serverless computing solutions for task management.

Serverless MCP Framework

MCP Server implementation with AWS Serverless services.

Created resources

A set of Lambda function connected to EventBridge rules that handle start, stop and task start. Create StepFunction state machine to wait until a specific date and send events.

Installation

Using the SAM CLI:

sam build
sam deploy --guided

Parameters

This application need some parameters when you deploy it:

• EventBusName: The event bus name to connect the integration to

• Project: Project identifier

• Environment: Environment identifier

• ServerName: The MCP server name

• ServerVersion: The MCP server version

• Instructions: The MCP server instructions

• DomainName: The domain name of the endpoint

• AcmCertificateArn: The certificate arn for the domain name provided

• AuthenticationType: Authentication type for the MCP server

• AuthenticationToken: The authentication token for the MCP server

• OAuthIssuerUrl: The issuer URL for OAuth authentication

• OAuthAuthorizationUrl: The authorization URL for OAuth authentication

• OAuthTokenUrl: The token URL for OAuth authentication

• OAuthRevocationUrl: The revocation URL for OAuth authentication

• OAuthRedirectUris: The redirect URIs for OAuth authentication

Outputs

• ServerEndpoint: The MCP server endpoint

Development

Requirements:

• NodeJS >= 22.x

Install NPM modules

npm install

Configure the .env file with MCP server specifications:

SERVER_NAME=local
SERVER_VERSION=1.0.0
INSTRUCTIONS=""

Configure the .env file with AWS environment configuration:

AWS_PROFILE=<your AWS profile>
AWS_REGION=<selected AWS region>

SSM_PREFIX=
TOOLS_SSM_PREFIX=
RESOURCES_SSM_PREFIX=
PROMPTS_SSM_PREFIX=
TOOL_LAMBDA_PREFIX=

Run local MCP server

npm run dev

The MCP server is running on http://localhost:3000/mcp.

Tool Inspector

Run the MCP Inspector

npm run inspector

Configure the inspector with:

• Transport Type: Streamable HTTP
• URL: http://localhost:3000/mcp

Connect to the MCP server with “Connect” button.

Claude Desktop

Use mcp-remote to proxy HTTP to STDIO:

{
  "mcpServers": {
    "example": {
      "command": "npx",
      "args": [
        "-y",
        "mcp-remote",
        "https://xxxxxxxxxx.execute-api.eu-west-1.amazonaws.com/dev/mcp",
        "--transport",
        "http-only"
      ]
    }
  }
}

Deploy

Requirements:

• SAM
• NodeJS >= 22.x

Build project

sam build

Deploy the stack

sam deploy --profile <your AWS profile> --guided

Usage

Once the solution is installed, you can extend the MCP server with resources, prompts or tools using SSM parameters and Lambda functions.
The SSM parameters must begin with the prefix /<project name>/<environment name>/, for example /mcp/dev/tools/echo.

As an example of integration you can take inspiration from the template: template.integration.yaml.

Resources

The SSM parameters must begin with prefix /<project name>/<environment name>/resources/, for example /mcp/dev/resources/example.
The content must be in valid JSON format and have the properties:

• name: Resource name
• uri: Resource URI, for example “config://example”
• content: Resource text content

It can be declared in a SAM template as:

ExampleResourceParameter:
  Type: AWS::SSM::Parameter
  Properties:
    Name: !Sub "/${Project}/${Environment}/resources/example"
    Type: String
    Value: |
      {
        "name": "example",
        "uri": "config://example",
        "content": "Just an example resource"
      }

Prompts

The SSM parameters must begin with prefix /<project name>/<environment name>/prompts/, for example /mcp/dev/prompts/echo.
The content must be in valid JSON format and have the properties:

• name: Prompt name
• description: Prompt description
• inputSchema.json: JSON schema
• content: Prompt template content

The content template will be elaborate with ejs with input data interpolation.

It can be declared in a SAM template as:

EchoPromptParameter:
  Type: AWS::SSM::Parameter
  Properties:
    Name: !Sub "/${Project}/${Environment}/prompts/echo"
    Type: String
    Value: |
      {
        "name": "echo",
        "description": "Execute the example tool",
        "inputSchema": {
          "json": {
            "type": "object",
            "properties": {
              "message": {
                "type": "string"
              }
            },
            "required": ["message"]
          }
        },
        "content": "Execute the tool 'echo' with the message '<%= message %>'"
      }

Tools

The SSM parameters must begin with prefix /<project name>/<environment name>/tools/, for example /mcp/dev/tools/echo.
The content must be in valid JSON format and have the properties:

• name: Prompt name
• description: Prompt description
• inputSchema.json: JSON schema

The related Lambda function that will be executed must be name as <project name>-<environment name>-tools-<tool name>, for example mcp-dev-tools-echo.
The function input and output must respect the Converse API pattern.

The parameter can be declared in a SAM template as:

EchoToolParameter:
  Type: AWS::SSM::Parameter
  Properties:
    Name: !Sub "/${Project}/${Environment}/tools/echo"
    Type: String
    Value: |
      {
        "name": "echo",
        "description": "Print the message provided in input",
        "inputSchema": {
          "json": {
            "type": "object",
            "properties": {
              "message": {
                "type": "string"
              }
            },
            "required": ["message"]
          }
        }
      }

The Lambda function implementation could be:

exports.handler = async ({ toolUseId, name, input }, context) => {
  return {
    name,
    toolUseId,
    status: 'success',
    content: [{
      text: input.message
    }]
  }
}

declared inline in a SAM template:

EchoToolFunction:
  Type: AWS::Serverless::Function
  Properties:
    FunctionName: !Sub "${Project}-${Environment}-tools-echo"
    Handler: index.handler
    InlineCode: |
      exports.handler = async ({ toolUseId, name, input }, context) => {
        return {
          name,
          toolUseId,
          status: 'success',
          content: [{
            text: input.message
          }]
        }
      }

Credits

• Repository badges by Shields.io

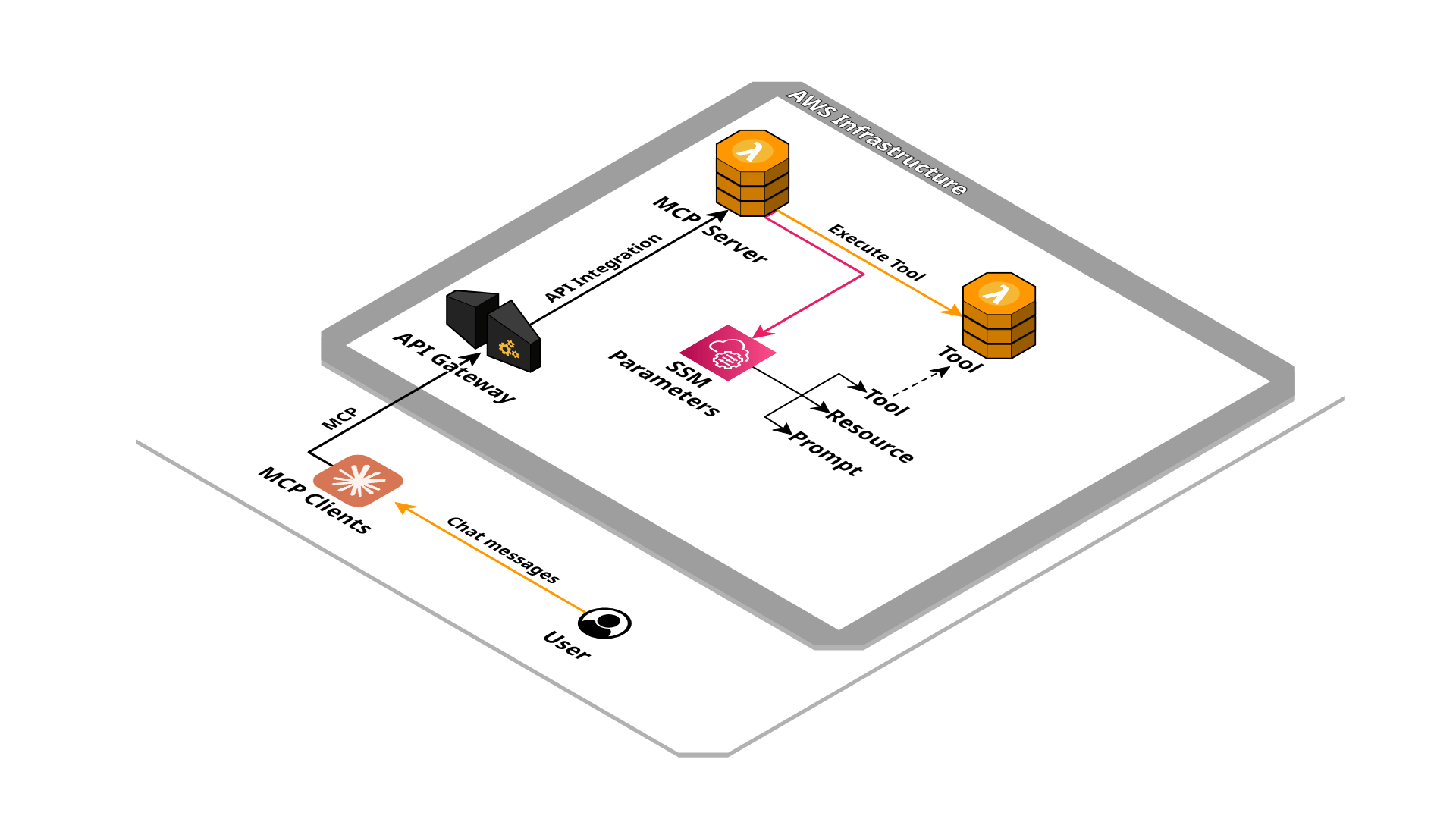

• Infrastructure schema by Cloudcraft
