What is Homebrew Age Mcp Server

homebrew-age-mcp-server is an Apache AGE MCP Server that enables users to leverage the Apache AGE extension for PostgreSQL, allowing for graph database functionalities and analysis of relationships and patterns in data.

Use cases

Use cases include visualizing customer purchase patterns, managing relationships between entities, creating and deleting graphs dynamically, and performing complex queries to analyze data relationships.

How to use

To use homebrew-age-mcp-server, install it via Homebrew or Python virtual environments. Configure the connection string in the ‘claude_desktop_config.json’ file to connect to your Azure Database for PostgreSQL instance and start the server using the specified command.

Key features

Key features include support for multiple graphs, graph creation and deletion, and the ability to enable write operations with the ‘–allow-write’ flag. It also integrates seamlessly with Azure Database for PostgreSQL.

Where to use

homebrew-age-mcp-server is primarily used in data analysis, application development, and any domain that requires the management and analysis of complex relationships in data, such as social networks, recommendation systems, and more.

AGE-MCP-Server

Apache AGE MCP Server

Apache AGE™ is a PostgreSQL Graph database compatible with PostgreSQL’s distributed assets and leverages graph data structures to analyze and use relationships and patterns in data.

Azure Database for PostgreSQL is a managed database service that is based on the open-source Postgres database engine.

Introducing support for Graph data in Azure Database for PostgreSQL (Preview).

Table of Contents

• Prerequisites
• Install
• Usage with Claude
• Usage with Visual Studio Code Insiders
• Write Operations
• Release Notes
• For More Information
• License

Prerequisites

• Python 3.13 and above
• This module runs on psycopg
• Enable the Apache AGE extension in your Azure Database for PostgreSQL instance. Login Azure Portal, go to ‘server parameters’ blade, and check 'AGE" on within ‘azure.extensions’ and ‘shared_preload_libraries’ parameters. See, above blog post for more information.
• Load the AGE extension in your PostgreSQL database.

CREATE EXTENSION IF NOT EXISTS age CASCADE;

• Claude
  Download from Claude Desktop Client or,

brew install claude

• Visual Studio Code Insiders
  Download from Visual Studio Code or,

brew intall visual-studio-code

Install

• with brew

brew tap rioriost/age-mcp-server
brew install age-mcp-server

• with uv

uv init your_project
cd your_project
uv venv
source .venv/bin/activate
uv add age-mcp-server

• with python venv on macOS / Linux

mkdir your_project
cd your_project
python3 -m venv .venv
source .venv/bin/activate
python3 -m pip install age-mcp-server

• with python venv on Windows

mkdir your_project
cd your_project
python -m venv venv
.\venv\Scripts\activate
python -m pip install age-mcp-server

Usage with Claude

• on macOS
  claude_desktop_config.json is located in ~/Library/Application Support/Claude/.

• on Windows
  You need to create a new claude_desktop_config.json under %APPDATA%\Claude.

• Homebrew on macOS

Homebrew installs age-mcp-server into $PATH.

• uv / Pyhon venv

On macOS:

On Windows:

If you need to hide the password or to use Entra ID, you can set --pg-con-str as follows.

{
  "mcpServers": {
    "age-manager": {
        ...
        "--pg-con-str",
        "host=your_server.postgres.database.azure.com port=5432 dbname=postgres user=your_username",
        ...
      ]
    }
  }
}

And, you need to set PGPASSWORD env variable, or to install Azure CLI and sign into Azure with your Azure account.

After saving claude_desktop_config.json, start Claude Desktop Client.

Usage with Visual Studio Code

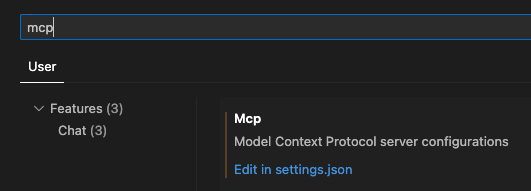

After installing, [Preferences]->[Settings] and input mcp to [Search settings].

Edit the settings.json as followings:

{
  "mcp": {
    "inputs": [],
    "servers": {
      "age-manager": {
        "command": "/Users/your_user_name/.local/bin/uv",
        "args": [
          "--directory",
          "/path/to/your_project",
          "run",
          "age-mcp-server",
          "--pg-con-str",
          "host=your_server.postgres.database.azure.com port=5432 dbname=postgres user=your_username password=your_password",
          "--debug"
        ]
      }
    }
  }
}

And then, you’ll see start to start the AGE MCP Server.

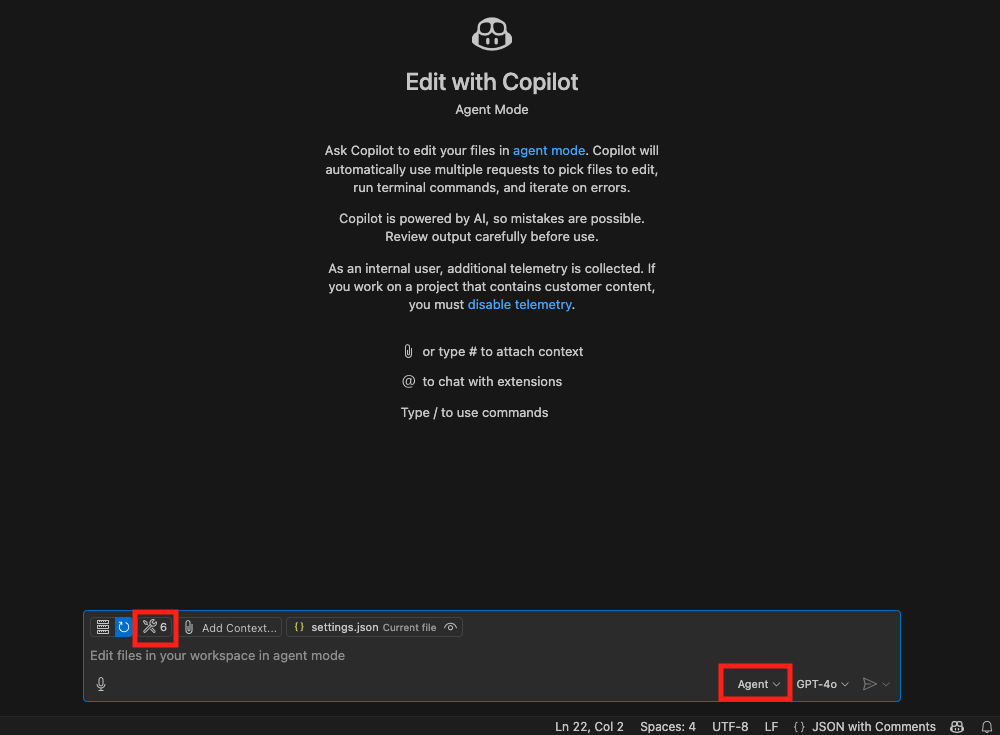

Switch the Chat window to agent mode.

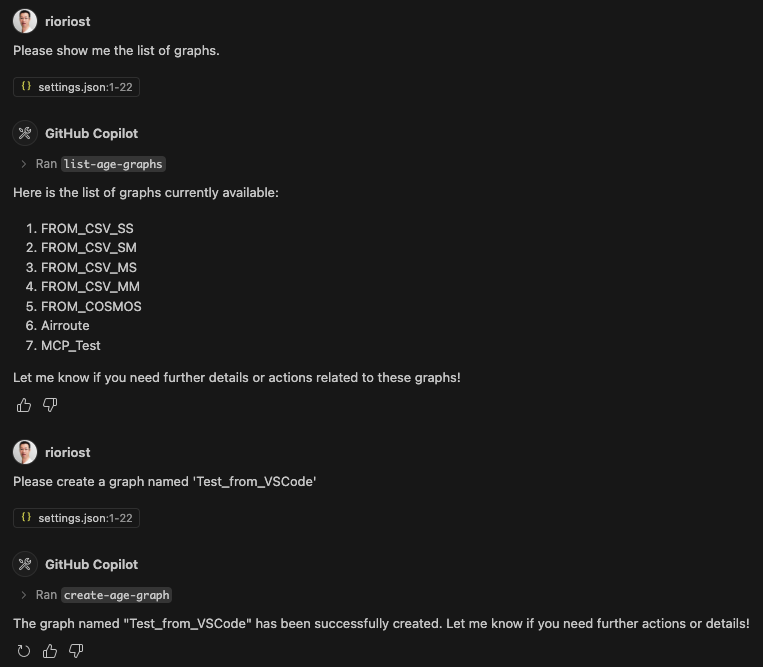

Now, you can play with your graph data via Visual Studio Code!

Write Operations

AGE-MCP-Server prohibits write operations by default for safety. If you want to enable write operations, you can use the --allow-write flag.

{
  "mcpServers": {
    "age-manager": {
      "command": "age-mcp-server",
      "args": [
        "--pg-con-str",
        "host=your_server.postgres.database.azure.com port=5432 dbname=postgres user=your_username password=your_password",
        "--allow-write"
      ]
    }
  }
}

Release Notes

0.2.16 Release

• Dependency Update

0.2.15 Release

• Dependency Update

0.2.14 Release

• Dependency Update

0.2.13 Release

• Dependency Update

0.2.12 Release

• Dependency Update

0.2.11 Release

• Dependency Update

0.2.10 Release

• Dependency Update

0.2.9 Release

• Dependency Update

0.2.8 Release

• Add support for VSCode(Stable)

0.2.7 Release

• Add support for VSCode Insiders

0.2.6 Release

• Fix a typo

0.2.5 Release

• Support connection with Entra ID

0.2.4 Release

• Dependency Update

0.2.3 Release

• Dependency Update

0.2.2 Release

• Drop a conditional test of CREATE operation by adding RETURN to the description for write-age-cypher tool.

0.2.1 Release

• Fix a bug in node/edge creation

0.2.0 Release

• Add multiple graph support
• Add graph creation and deletion support
• Obsolete --graph-name argument

0.1.8 Release

• Add --allow-write flag

0.1.7 Release

• Add Windows support

0.1.6 Release

• Fix parser for RETURN values

0.1.5 Release

• Draft release

0.1.4 Release

• Draft release

0.1.3 Release

• Draft release

0.1.2 Release

• Draft release

0.1.1 Release

• Draft release

0.1.0a1 Release

• Draft release

For More Information

• Apache AGE : https://age.apache.org/
• GitHub : https://github.com/apache/age
• Document : https://age.apache.org/age-manual/master/index.html

License

MIT License
