What is Know Flow Mcp

KnowFlow MCP is a versatile, unified knowledge retrieval tool designed to enhance Large Language Models (LLMs) by providing structured external knowledge on demand, operating according to the Model Context Protocol (MCP).

Use cases

Use cases for KnowFlow MCP include integrating with chatbots to provide accurate information, enhancing virtual assistants with domain-specific knowledge, and supporting research applications that require real-time data retrieval.

How to use

To use KnowFlow MCP, clone the repository, install dependencies using npm or yarn, configure the .env file with the knowledge directory, build the project, and start the server. Ensure to set up the mcp-config.json for integration with MCP-compatible LLMs.

Key features

Key features of KnowFlow MCP include responding to knowledge retrieval requests from MCP-compatible LLMs, performing searches across various knowledge sources, providing structured responses with clear source metadata, and establishing a foundation for integration with multiple knowledge sources.

Where to use

KnowFlow MCP can be used in fields that require enhanced data retrieval and context-aware responses, such as AI-driven applications, customer support systems, and research tools.

KnowFlow MCP

A versatile, unified knowledge retrieval tool operating according to the Model Context Protocol (MCP). KnowFlow enhances Large Language Models by providing structured external knowledge on demand.

🚀 Overview

KnowFlow simulates a simplified version of Retrieval-Augmented Generation (RAG), enabling LLMs to dynamically fetch context or domain-specific information from external knowledge bases, resulting in precise, context-aware responses.

Core Features

• Responds to knowledge retrieval requests from MCP-compatible LLMs
• Performs searches across knowledge sources based on queries received from LLMs
• Provides structured responses with clear source metadata
• Establishes a foundation for integration with multiple knowledge sources

📋 Requirements

• Node.js (version 16.x or higher)
• TypeScript (version 4.x or higher)
• npm or yarn

🛠️ Installation

# Clone the repository
git clone https://github.com/esurovtsev/know-flow-mcp.git
cd know-flow-mcp

# Install dependencies
npm install
# or
yarn install

🔧 Configuration

Create a .env file in the root directory with the following configuration:

KNOWLEDGE_DIR=./knowledge

Where KNOWLEDGE_DIR is the path to the directory containing your knowledge base files (.txt and .md files).

🚀 Usage

# Build the project
npm run build
# or
yarn build

# Start the server
npm start
# or
yarn start

🔗 MCP Configuration

To use KnowFlow with any MCP-compatible LLMs (such as Claude, GPT-4, etc.), you can use the provided mcp-config.json file:

{
  "mcpServers": {
    "knowflow": {
      "command": "node",
      "args": [
        "dist/index.js"
      ]
    }
  }
}

This configuration file tells MCP-compatible LLMs how to start and connect to the KnowFlow MCP server. You would typically place this file in your project directory and reference it when setting up the LLM to use MCP servers.

Note: Once KnowFlow is stable and published to npm, the command will change to npx know-flow-mcp instead of node dist/index.js.

🧪 Testing with MCP Inspector

The MCP Inspector is a tool that allows you to test your MCP server without needing to integrate with an LLM.

# Run the Inspector with your MCP server
npx @modelcontextprotocol/inspector node dist/index.js

This will start the MCP Inspector web interface (typically at http://127.0.0.1:6274) where you can:

1. View all available tools exposed by the server
2. Test the search_knowledge tool by sending requests with different parameters
3. View the responses and debug the communication

If you encounter port conflicts, you can specify custom ports:

npx @modelcontextprotocol/inspector node dist/index.js --port 8080 --proxy-port 8081

Where:

• --port specifies the web interface port (default: 6274)
• --proxy-port specifies the proxy server port (default: 6277)

Example Response Format

{
  "content": "We agreed to consolidate all backend modules under a single monorepo using Nx.",
  "metadata": {
    "reference": "architecture-notes.md",
    "source": "docs",
    "lastModified": "2024-03-14",
    "score": 0.95
  }
}

🧪 Testing

# Run tests
npm test
# or
yarn test

📝 API Documentation

Detailed API documentation will be available once the project reaches a more mature stage.

🗂️ Project Structure

know-flow-mcp/
├── src/                # Source code
│   ├── index.ts        # Entry point
│   ├── server.ts       # MCP server definition and tool registration
│   ├── core/           # Core functionality
│   ├── plugins/        # Plugin system for knowledge sources
│   └── services/       # Services including KnowledgeService
├── dist/               # Compiled JavaScript files
├── .gitignore          # Git ignore file
├── LICENSE             # MIT License
├── package.json        # Project metadata and dependencies
├── README.md           # Project documentation
└── tsconfig.json       # TypeScript configuration

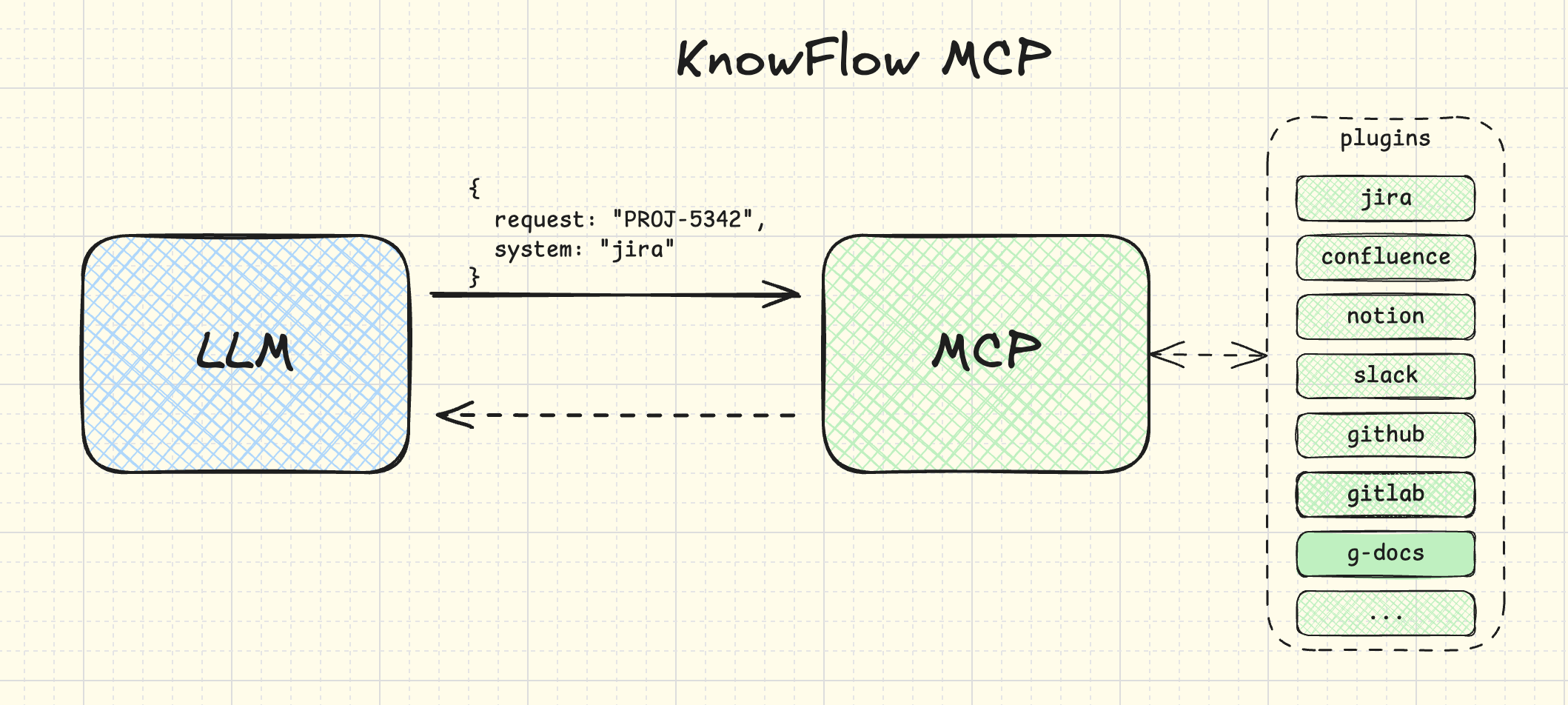

🔌 Plugin System

KnowFlow uses a plugin-based architecture to integrate with different knowledge sources:

• Plugins are discovered synchronously at startup
• Each plugin represents a different knowledge source (docs, jira, confluence, etc.)
• The KnowledgeService coordinates searches across all available plugins
• New knowledge sources can be added by implementing the plugin interface

🔮 Future Roadmap

The foundational design explicitly anticipates integration with additional knowledge sources such as:

• Notion pages
• Confluence documentation
• Google Docs documents
• Linear and Jira issues or tickets
• Other popular knowledge repositories utilized by developers and organizations

🤝 Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.
