What is Langgraph Mcp

The Universal Assistant built with LangGraph and the Model Context Protocol (MCP) is an AI solution that integrates natural language models with external data sources and tools, enabling seamless communication and task execution in a modular workflow system.

Use cases

The assistant can be utilized in various applications like AI-powered IDEs, enhanced chat interfaces, and custom AI workflows, serving as a versatile tool for natural language understanding, automation, and decision-making across multiple domains.

How to use

To set up the Universal Assistant, clone the repository, create a virtual environment, install LangGraph CLI and its dependencies, and configure environment variables with necessary API keys. After this setup, you can run the assistant and execute tasks by utilizing the integrated features.

Key features

Key features include a modular design that allows for easy integration of new tools and services, a routing system for intelligent decision-making on tool invocation, and support for various data sources through the MCP framework, promoting flexibility and extensibility.

Where to use

This assistant can be implemented in environments where automation and enhanced user interaction are valuable, such as customer support systems, knowledge management platforms, AI-centric applications, and collaborative development tools.

Universal Assistant built with LangGraph and Model Context Protocol (MCP)

Model Context Protocol (MCP) is an open protocol that enables seamless integration between LLM applications and external data sources and tools. Whether you’re building an AI-powered IDE, enhancing a chat interface, or creating custom AI workflows, MCP provides a standardized way to connect LLMs with the context they need. Think of MCP like a USB-C port for AI applications. Just as USB-C provides a standardized way to connect your devices to various peripherals and accessories, MCP provides a standardized way to connect AI models to different data sources and tools.

LangGraph is a framework designed to enable seamless integration of language models into complex workflows and applications. It emphasizes modularity and flexibility. Workflows are represented as graphs. Nodes correspond to actions, tools, or model queries. Edges define the flow of information between them. LangGraph provides a structured yet dynamic way to execute tasks, making it ideal for writing AI applications involving natural language understanding, automation, and decision-making.

In this earlier article we enhanced LangGraph’s retrieval agent template to develop and deploy an AI solution.

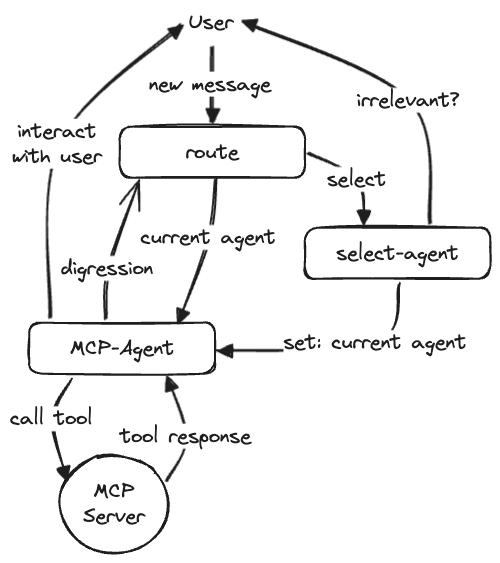

In this project, we combine LangGraph with MCP to build our own Universal Assistant. For our universal assistant we implement a multi-agent pattern as follows:

Assistant receives the user message and decides the agent to use. The agent node decides the right tool to use, and calls the tool on the MCP server. Since all our agents are based on MCP, a single MCP-Agent node is sufficient for LLM based orchestraion, and another single node is sufficient to work with MCP servers to invoke their tools.

Development Setup

1. Create and activate a virtual environment

   git clone https://github.com/esxr/langgraph-mcp.git
   cd langgraph-mcp
   python3 -m venv .venv
   source .venv/bin/activate


2. Install Langgraph CLI

   pip install -U "langgraph-cli[inmem]"


   Note: “inmem” extra(s) are needed to run LangGraph API server in development mode (without requiring Docker installation)

3. Install the dependencies

   pip install -e .


4. Configure environment variables

   cp env.example .env


   Add your OPENAI_API_KEY, GITHUB_PERSONAL_ACCESS_TOKEN etc. to the .env

   Note: We have added support for Milvus Lite Retriever (support file based URI). Milvus Lite won’t work on Windows. For Windows you may need to use Milvus Server (Easy to start using Docker), and change the MILVUS_DB config to the server based URI. You may also enhance the retriever.py to add retrievers for your choice of vector databases!

Implementation Details

There are 3 main parts to our implementation:

1. Building the Router
2. The Assistant
3. A generic MCP wrapper

Building the Router

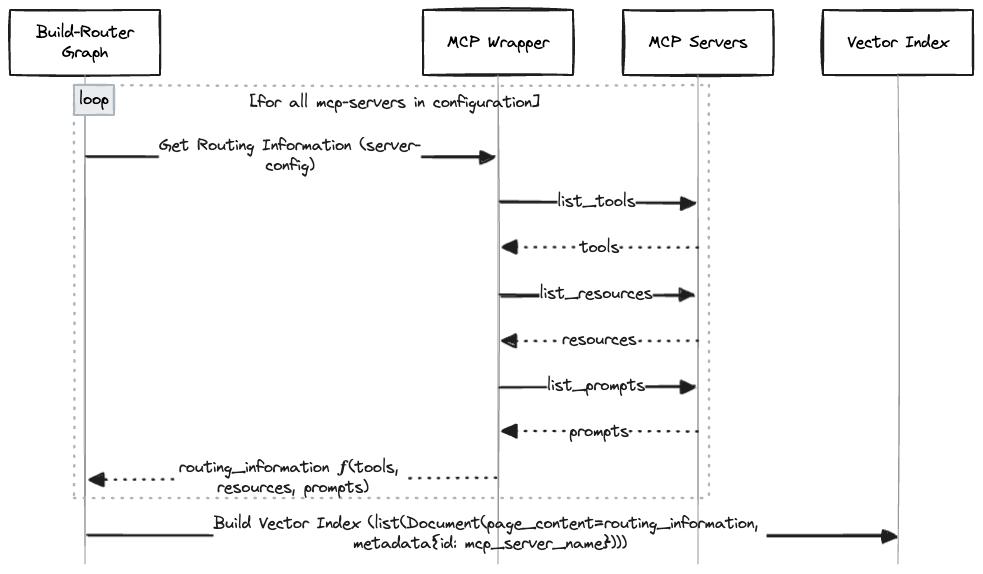

Our graph to build the router is implemented in build_router_graph.py. It collects routing information based on tools, prompts, and resources offered by each MCP server using our mcp_wrapper.py. It indexes this routing information for each server in a vector database.

The Assistant

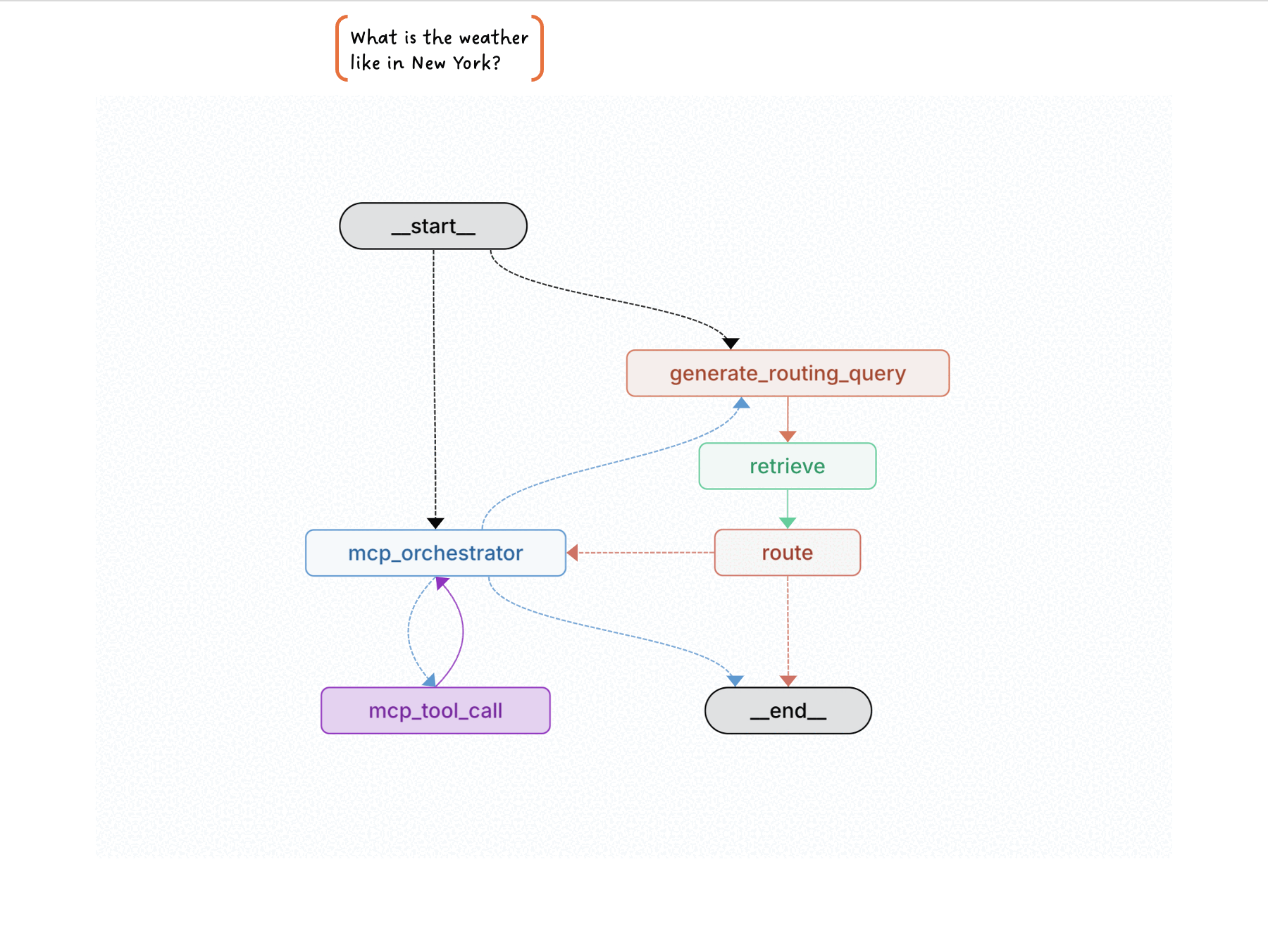

The assistant graph is implemented in assistant_graph.py. The following animation describes the role of various nodes and the flow of control thru it, with the help of an example

A Generic MCP Wrapper

mcp_wrapper.py employs a Strategy Pattern using an abstract base class (MCPSessionFunction) to define a common interface for executing various operations on MCP servers. The pattern includes:

1. Abstract Interface:
   • MCPSessionFunction defines an async __call__ method as a contract for all session functions.
2. Concrete Implementations:
   • RoutingDescription class implements fetching routing information based on tools, prompts, and resources.
   • GetTools class implements fetching tools for the MCP server and transforming them to the format consumable by LangGraph.
   • RunTool class implements invoking a tool on MCP server and returning its output.
3. Processor Function:
   • apply serves as a unified executor. It:
   • Initializes a session using stdio_client from mcp library.
   • Delegates the actual operation to the provided MCPSessionFunction instance via await fn(server_name, session).
4. Extensibility:
   • New operations can be added by subclassing MCPSessionFunction without modifying the cor e processor logic. for e.g. we should be able to add support for getting tools and executing tools using this pattern.

A Demonstration!

Here’s an end to end video!

https://github.com/user-attachments/assets/cf5b9932-33a0-4627-98ca-022979bfb2e7
