mcp-server-demo
Overview
为了测试验证Dify的MCP功能，Dify上使用MCP SSE/StreamableHTTP插件，需要一个mcp server来对接验证。本项目采用streamable_http传输模式构建的的mcp-server示例，实现了查询linux服务器cpu利用的简单功能。

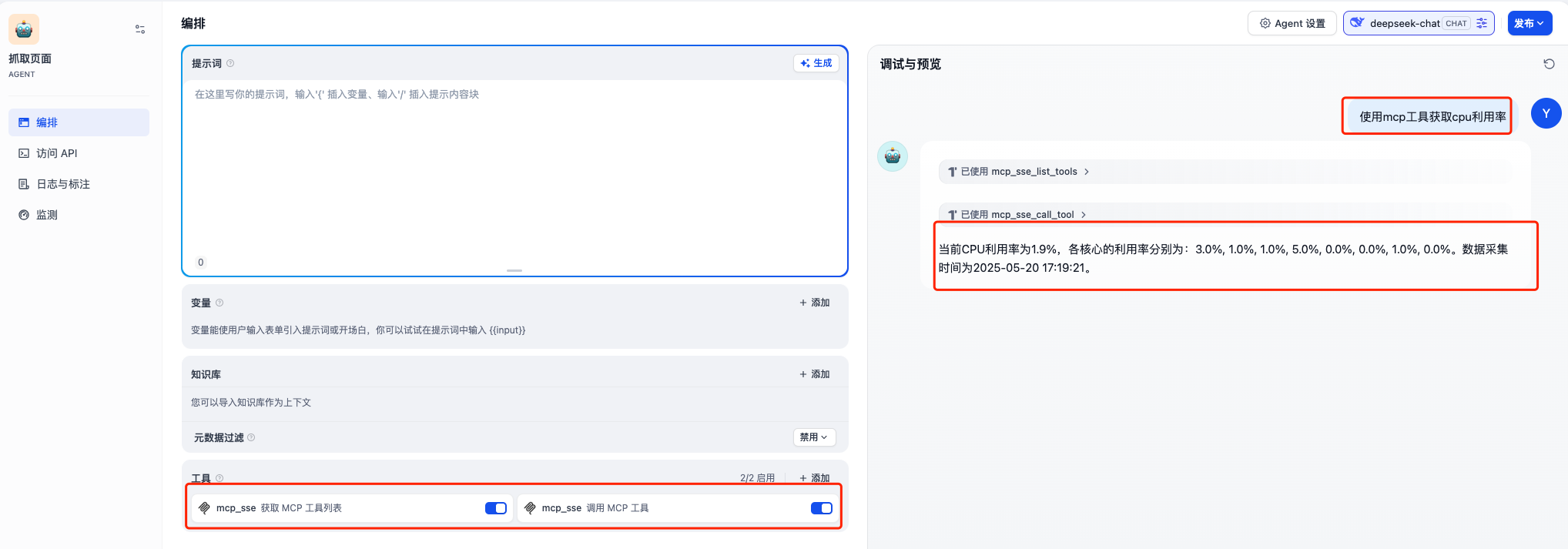

最终效果如下图所示
Get Started
如何安装MCP SSE/StreamableHTTP插件，这里不赘述
下载代码
git clone https://github.com/hchyue/mcp-server-demo.git cd mcp-server-demo
运行环境
# Create a virtual environment and install dependencies # 如何没有安装uv，可以执行下面这个命令，如果已经安装，可以跳过 # macOS pip3 install uv --break-system-packages # Linux(ubuntu) pip3 install uv --break-system-packages
执行
# We support using Python 3.10, 3.11, 3.12 uv venv .mcpvenv --python=3.10 # Activate the virtual environment # For macOS/Linux source .mcpvenv/bin/activate uv pip install psutil Flask python mcp-server.py
MCP SSE/StreamableHTTP插件的授权配置

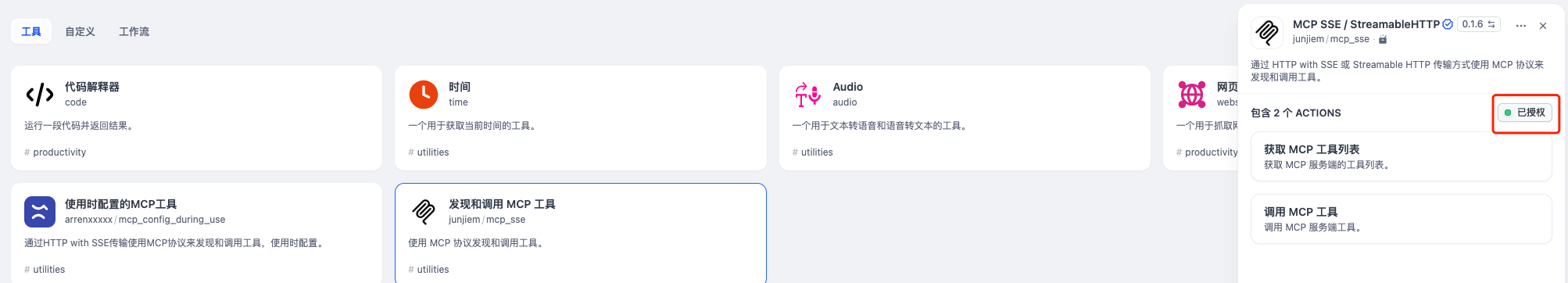

找到MCP SSE/StreamableHTTP插件的授权配置入口

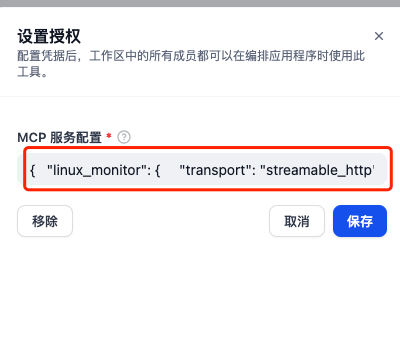

填写如下的json，注意x.x.x.x是mcp-server.py所运行的server IP
{ "linux_monitor": { "transport": "streamable_http", "url": "http://x.x.x.x:5000/mcp", "headers": { "X-Mcp-Protocol": "streamable_http", "X-Mcp-Version": "1.0", "Content-Type": "application/json" }, "timeout": 30, "provider_name": "linux_monitor" } }
验证
创建一个agent，增加“mcp_sse 获取MCP工具列表”和“mcp_sse 调用MCP工具”两个工具，然后输入“使用mcp工具获取cpu利用率”
