Content
MCP Server Google Auth Project
This project demonstrates an MCP (Model Context Protocol) server with Google Drive integration and a client to interact with it using Gemini.
Prerequisites
- Python 3.12+
uv
(Python package installer and virtual environment manager)- Google Cloud Project with Vertex AI API enabled.
- OAuth 2.0
credentials.json
file from Google Cloud Console.
Setup
-
Clone the repository:
git clone https://github.com/Nvillaluenga/mcp-server-with-google-auth.git cd mcp-server-with-google-auth
-
Create and activate a virtual environment with
uv
:uv venv source .venv/bin/activate # On Windows: .venv\Scripts\activate
-
Install dependencies with
uv sync
from pyproject.toml:uv sync
The dependencies are defined in
pyproject.toml
and include:fastapi
- Web framework for the MCP serverfastmcp
- MCP server implementationgoogle-api-python-client
- Google API clientgoogle-auth
andgoogle-auth-oauthlib
- Google authenticationgoogle-genai
- Google Generative AI interface
-
Set up Google OAuth Credentials:
- Go to the Google Cloud Console
- Navigate to “APIs & Services” > “Credentials”
- Create OAuth 2.0 Client IDs (Web application)
- Add
http://localhost:8081
to “Authorized JavaScript origins” - Add
http://localhost:8081/oauth2callback
to “Authorized redirect URIs” - Download and rename the credentials file to
credentials.json
and place it in the project root
-
Configure Environment Variables:
- Create
.env
from the template:cp .env.template .env
- Edit
.env
with your configuration:PROJECT
: Your Google Cloud Project IDLOCATION
: Your GCP region (e.g.,us-central1
)DEFAULT_MODEL
: Gemini model name (e.g.,gemini-2.0-flash-001
)HOST
: Server host (default:localhost
)PORT
: Server port (default:8081
)
- Create
Running the Application
You’ll need two terminals with active uv
environments:
1. Start the MCP Server:
python drive_web_mcp_server.py
2. Run the Client:
python main.py
Or specify a server URL:
python main.py http://your-server-address:port
The client will prompt you to authenticate with Google Drive:
- Open the displayed URL in your browser
- Complete the Google authentication flow
- Return to the terminal and start querying Gemini with access to Google Drive
How it Works
-
drive_web_mcp_server.py
: FastAPI-based MCP server that:- Handles OAuth 2.0 authentication with Google
- Exposes tools for the LLM to call
- Stores client credentials in memory by
client_id
-
mcp_client.py
: ContainsMCPClient
andGeminiMCPClient
classes:- Manages connections to MCP servers
- Handles authentication flow
- Interfaces with Gemini models
- Translates between MCP tools and Gemini function calls
-
main.py
: CLI to interact withGeminiMCPClient
-
.env
and.env.template
: Environment configuration -
credentials.json
: Google OAuth 2.0 client secrets (never commit this)

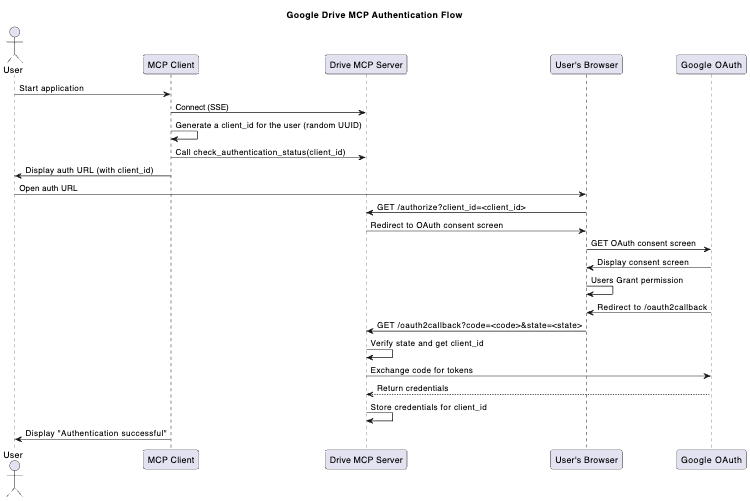

Authentication Flow Diagram
The following diagram illustrates the authentication process between the MCP client, MCP server and Google OAuth:
Available Tools
search_drive_files(query: str)
: Search files in Google Drivecheck_authentication_status()
: Check client authentication status
