What is Painter Mcp

painter-mcp is a demo project based on the MCP protocol, designed as a drawing tool that supports brush tools and the ability to retrieve drawing results. It provides a complete MCP-server application example for testing and learning the use of the MCP protocol.

Use cases

Use cases include online drawing applications, collaborative whiteboards, educational tools for teaching drawing techniques, and as a backend service for any application requiring drawing functionalities.

How to use

To run the application, navigate to the ‘whiteBoard’ directory, install dependencies using ‘npm install’, and start the application with ‘npm run dev’. Access the drawing board at localhost:3000. For API testing, run ‘draw_start.py’ to see the results.

Key features

Key features include brush tool customization (line width and color), the ability to retrieve drawing results in PNG format, real-time visualization through websocket communication between the server and frontend, and a set of API interfaces for various drawing operations.

Where to use

painter-mcp can be used in educational environments for teaching the MCP protocol, in software development for creating drawing applications, and in collaborative tools where real-time drawing and visualization are required.

MCP-painter

这是一个基于MCP协议编写的绘图工具示例项目，支持画笔工具和绘图结果获取功能。
提供了一个完整的MCP-server应用示例，可用于测试和学习MCP协议的使用。

画板功能介绍

• 画笔工具：支持设置画笔线宽和颜色
• 绘图结果获取：支持以PNG格式获取当前画布图像
• 可视化：画图程序的服务端和前端之间使用websocket通信,前端可实时查看调用api接口后绘图操作的结果（可视化）。
• mcp-painter使用服务端提供api接口编写工具。

运行方式

应用运行

cd whiteBoard
npm install
npm run dev

查看localhost:3000,即可看到画板页面。

接口测试

运行 draw_start.py

python draw_start.py

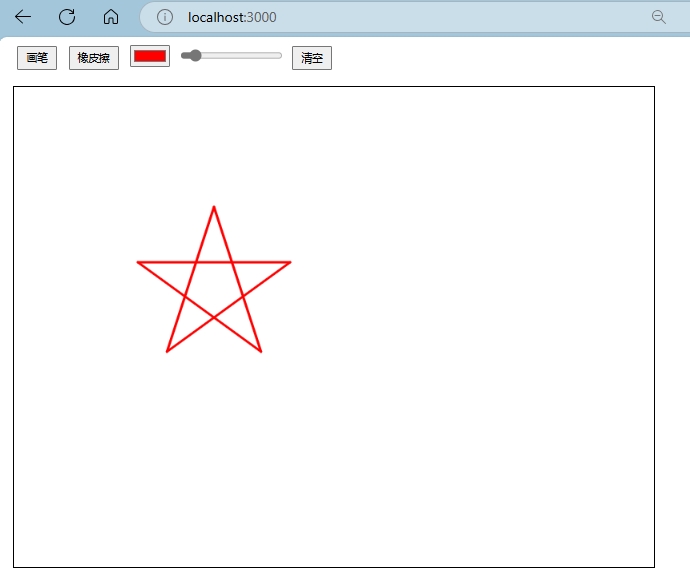

可以看到以下结果

白板程序的mcp-server使用说明

编译mcp-painter(server)

cd mcp-painter
npm install
npm run build

在cline，claude-desktop等支持mcp协议的客户端添加mcp-painter即可。由于环境问题，我直接使用nodejs运行。

"DrawingBoard": {
      "command": "yournodepath/node.exe",
      "args": [
        "yourpathto/mcppainter/build/index.js"
      ],
      "env": {},
      "disabled": false,
      "autoApprove": [
        "set_brush",
        "use_eraser",
        "draw_on_canvas",
        "set_color",
        "get_image",
        "clear_canvas",
        "get_canvas_size",
        "set_canvas_size",
        "get_current_draw_parameters"
      ]
    }

MCP协议编写工具说明

1. 画笔工具封装

• 封装了画笔的线宽和颜色设置功能
• 通过MCP协议暴露以下接口：
  • 设置画笔线宽
  • 设置画笔颜色
  • 获取当前画笔配置

2. 绘图结果获取

• 封装了画布图像获取功能
• 支持以PNG格式返回绘图结果
• 通过MCP协议暴露以下接口：
  • 获取当前画布图像
  • 获取画布尺寸信息

接口说明

1. 画笔相关接口

• POST /brush：设置画笔属性

  • 参数：width（线宽）, color（颜色）
  • 示例：{"width": 3, "color": "#ff0000"}

• POST /eraser：设置橡皮擦属性

  • 参数：width（线宽）
  • 示例：{"width": 10}

2. 绘图操作接口

• POST /draw：执行绘图操作
  • 参数：x, y, state
  • 示例：{"x": 100, "y": 200, "state": 'start'}
  • state: start,move,end

3. 颜色选择器接口

• POST /color-picker：设置颜色
  • 参数：color（颜色值）
  • 示例：{"color": "#00ff00"}

4. 画布操作接口

• POST /clear：清空画布
• POST /set_canvas_size：设置画布尺寸
  • 参数：width, height
  • 示例：{"width": 800, "height": 600}
• GET /get_canvas_size：获取画布尺寸
• GET /get_current_draw_parameters：获取当前绘图参数

5. 图像获取接口

• GET /image：获取当前画布图像
  • 返回：PNG格式图像base64数据
